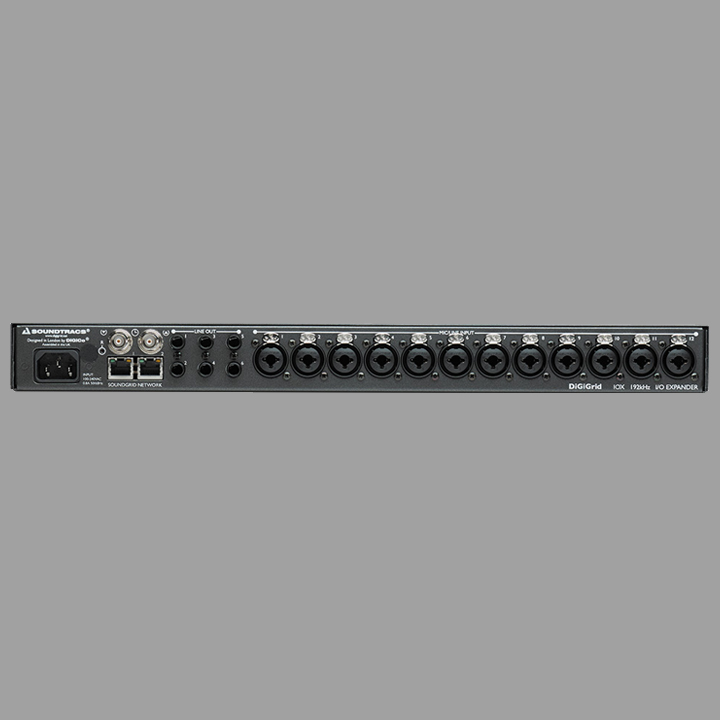

DiGiGrid IOX
Μια μονάδα I/O με υψηλής ποιότητας μετατροπείς και αναλογικές βαθμίδες, η οποία έχει 12 mic/line inputs και 6 line outputs και 4 stereo headphone outputs. Μπορεί να χρησιμοποιηθεί και εκτός συστήματος LV1, σαν μια απλή κάρτα ήχου με οποιοδήποτε DAW.
- 12 mic/line inputs with broadcast/studio-quality preamps
- ASIO- and Core Audio-compliant audio I/O
- 6 line outputs, 4 headphone outputs
- Connects via a single Ethernet cable (Cat 5e/Cat 6)
- Quick-view front panel metering
- High-definition 192 kHz ADC conversion
Share
Description
Analog Inputs
- Input Impedance: Mic: 2K5 / Line: 8K0 Ohms
- Gain Range: Mic: 0 dB to +52.5 dB in 7.5-dB steps / Line: -10 dB to +42.5 dB in 7.5-dB steps
- Fine control provides an additional 0dB to 7dB in 0.5-dB steps-
- Maximum Input Level: Mic: +26 dBu / Line: +36 dBu
- Mic Equivalent Input Noise: > -126 dB (150 Ohm source, gain +59.5 dB)
- Harmonic Distortion: Typically < 0.01% @ unity gain, -10dB input @ 1 kHz
- Frequency Response: +/-0.5 dB (20 Hz to 20 kHz)
- Channel Separation: Better than 90 dB (40 Hz to 15 kHz)
Analog Outputs
- Maximum Output Level: +22 dBu
- Residual Output Noise: <90 dB (20 Hz to 20 kHz)
- Frequency Response: +/-0.5 dB (20 Hz to 20 kHz)
- Output Impedance: 50 Ohms
- Channel Separation: Better than 90 dB (40 Hz to 15 kHz)
- Harmonic Distortion: Typically < 0.01% @ unity gain, -10dB input @ 1 kHz
Dimensions
- Width: 48.26 cm / 19 inches
- Height: 4.36 cm / 1U
- Depth: 35.6 cm / 14.01 inches
- Device Weight: 4.5 kg / 9.92 lbs
